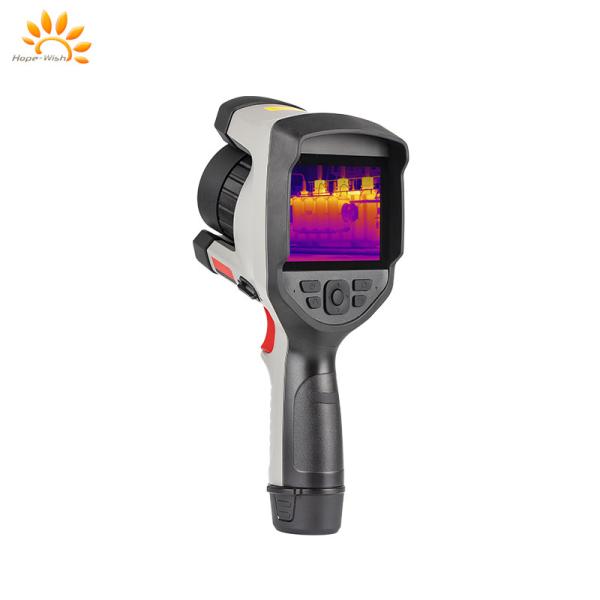

| | Model | HP-T9 |
| 1 | Detector | Type | Uncooled focal plane micro-thermal |
| Resolution | 384×288 | 640×480 |
| Wavelength range | 8～14um |
| Thermal sensitivity | ≤0.04℃ |
| Frame rate | 50/60Hz |
| 2 | Lens | Lens | Automatic Identification |
| Focusing method | Manual/electric/automatic |
| FOV | 25°×19° |
| Focusing range | 0.1m~∞ |
| 3 | Dispaly | Monitor | 4.0” TFT LCD,Color, with capacitive touch screen |
| Resolution | 640×480 |
| Backlight | High brightness sunlight screen |
| Palette (pattern) | 11 color codes can be selected |
| Image adjustment | automatic / manual |
| 4 | Image | Spatial resolution | 1.12mrad | 0.67mrad |
| Super pixel function | 768×576 | 1280×960 |
| Display method | Infrared, visible light, picture-in-picture, dual-band fusion image (DSIE) |
| Digital zoom | 1~10x |
| Visible light camera | 5 million pixels |
| Video output | HDMI |
| Anchor point display | Laser positioning points are displayed on the image |
| 5 | Storage | Memory | TF card |
| Video recording | Yes, the general video format storage of this machine, timing storage can be set, support infrared, visible light, fusion mode |
| Image storage | Yes, infrared image JPEG format, with infrared temperature data; visible light, fusion JPEG format storage |
| Note | 60-second voice recording, stored with the image, optional text annotation |
| 6 | Measurement | Temperature range | -20℃～+650℃,can be extended to 1200℃ |
| Temperature accuracy | ±2℃ or ±2% of measured value, whichever is greater |
| Temperature measurement mode | Real-time 10 movable points (the hottest and coldest points are independent), 8 movable areas (the highest temperature, the lowest temperature capture, average temperature measurement), 3 line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color) |
| Temperature correction | Automatic (short time, long time, custom) / manual |
| Atmospheric window correction | Corrected according to infrared window transmittance |
| Atmospheric transmittance correction | Automatic, according to the input target distance, relative humidity, ambient temperature |
| Background temperature correction | Automatically correct according to the entered temperature |
| Emissivity correction | The emissivity is adjustable from 0.01 to 1.0 (in increments of 0.01), or the emissivity can be corrected through a predefined material emissivity meter |
| 7 | Power system | Battery | Rechargeable lithium battery, replaceable |
| Battery working time | 4 hours |
| Battery charging time | Fast charging function (external charger), can be charged randomly |
| Power management | Automatic sleep, automatic shutdown |
| 8 | Physical characteristic | Overall size | W116×D175×H278mm |
| Total Weight | ≤1.1kg(including battery) |
| Handrail | Yes, can be installed on both sides |
| tripod | 1/4″-20-UNC |
| 9 | Interface | Memory card slot | TF card connector |
| Data interface | Mini-USB Type C ,picture/video transmission |
| Video interface | Micro-HDMI |
| Power connector | Mini-USB Type C |
| 10 | Others | Laser | Laser rangefinder |
| Fill light | 2 LED |
| Microphone | Yes |
| Buzzer | Yes |
| WiFi | Real-time image transmission, can be operated through the mobile APP control menu, stored images can be analyzed to generate reports, applicable to Android & ios systems |
| Bluetooth module | Audio output/input (Bluetooth headset) |
| GPS | Yes |
| Electronic compass | Yes |
| Set up | Date/time, temperature unit ℃/℉/K, language, LCD backlight, IP address |
| 11 | Environmental parameter | Operating temperature | -15℃～+50℃ |
| storage temperature | -40℃～+70℃ |
| Humidity | ≤95% non-condensing |
| Protection level | IP54 |
| Vibrate | 2g,GB/T2423.10(IEC60068-2-6) |
| Rush | 30g,GB/T2423.5(IEC60068-2-27) |
| Fall | 2m,GB/T2423.8(IEC60068-2-32) |
| 12 | Security | Performance | GB/T19870-2005 |
| Safety | GB4943.1-2011 |
| EMC | Meet CE requirements |
| RoHS | 2011/65/EC |
| Laser | IEC60825-1-2014 |
